Object Wizard Explorer

This plugin allows you to obtain a summary of the configuration of instances associated with a template using the Object Wizard.

Let's take the example of the template below:

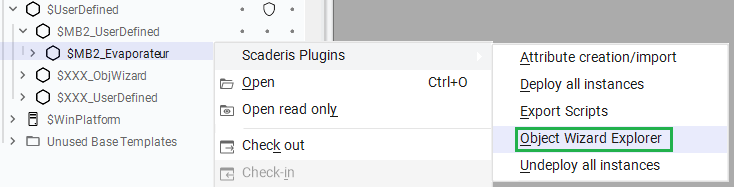

Right-click on the Template, then "Scaderis Plugins," and then "Object Wizard Explorer."

The following summary is displayed:

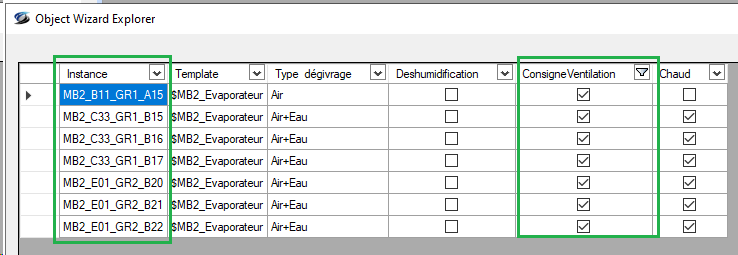

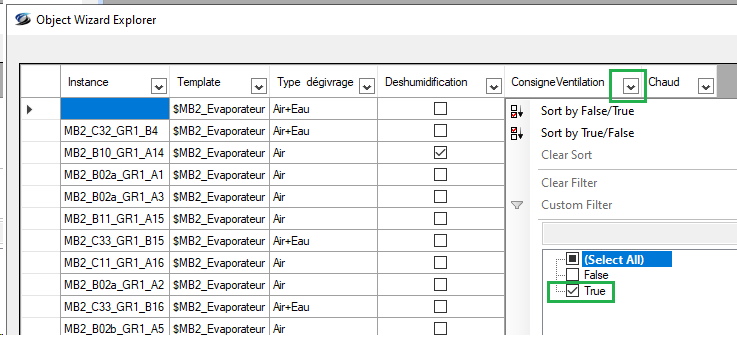

It is possible to filter by one or more options of the "Object Wizard" to display only the relevant instances:

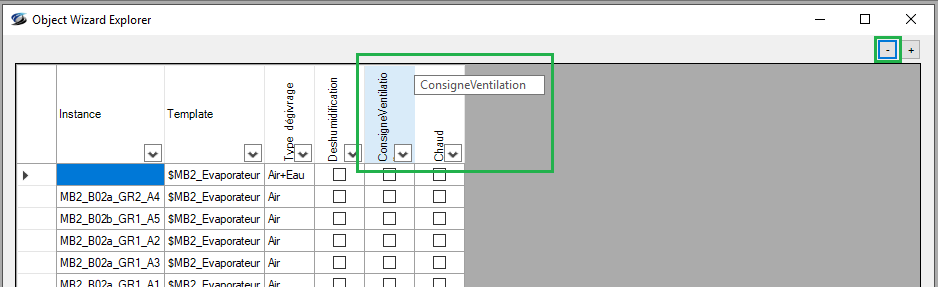

It is possible to reduce the size of the columns so they fit the content of the cells (excluding headers). The titles can be displayed vertically via their tooltip:

Then restore the size of the columns:
