Import Graphics

This plugin allows you to import one or more Industrial Graphics previously exported in XML format.

danger

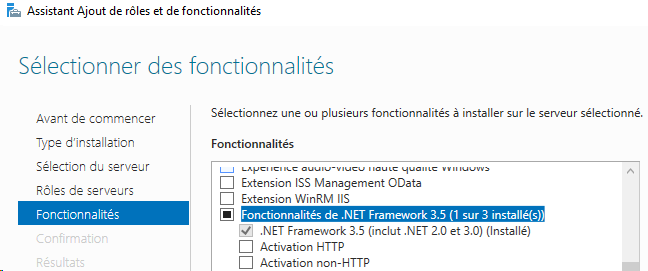

It is essential to install the .NET Framework 3.5 beforehand to use this feature.

To use this feature:

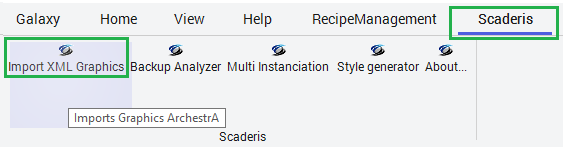

Click on the "Scaderis" menu and then on "Import XML Graphics"

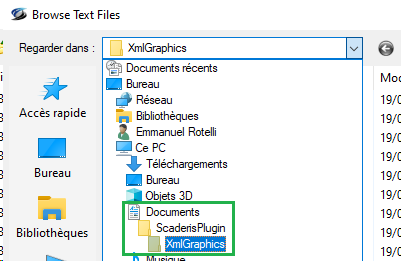

Click on "Browse"

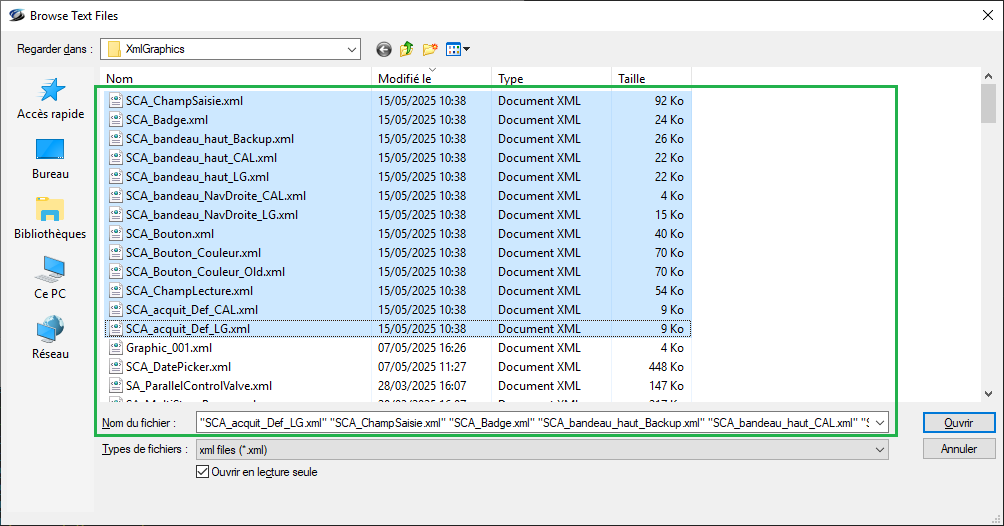

Select one or more XML files and then click "Open"

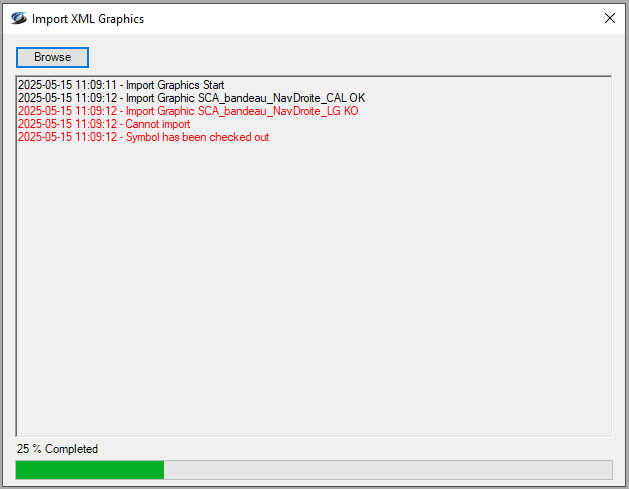

The import starts automatically. In case of an error, the progress popup displays a red message indicating the cause of the error.

info

An XSD validation is performed before the import to validate the XML files. If the format of an XML file is incorrect, the corresponding errors are displayed in red.
