Multi Instanciation

This plugin allows you to massively create instances from a spreadsheet (like Excel) or a CSV file (tab, comma, or semicolon separator).

It also allows you to associate the instances with an Area or another Instance (Containment) and to define its "Contained Name".

To use this feature:

Click on the "Scaderis" menu and then on "Multi Instanciation"

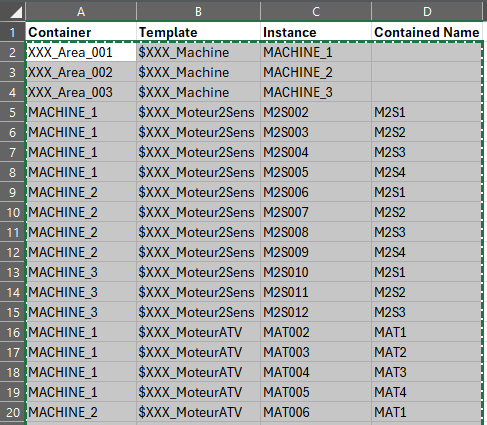

Copy only the data (without column headers) from the source file (Excel or CSV file)

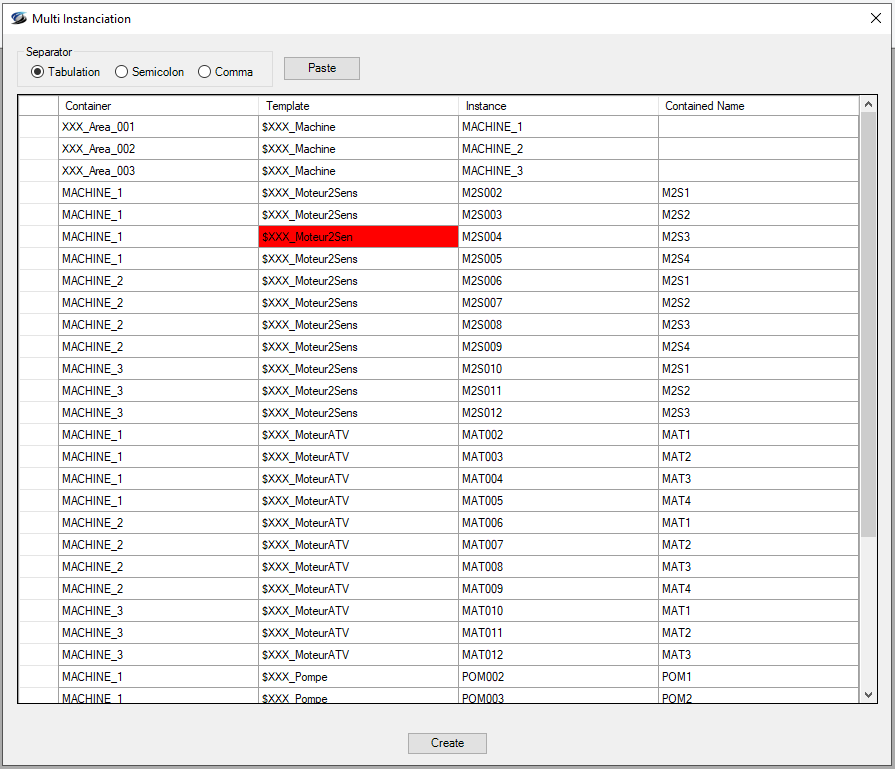

Select the separator and then click the "Paste" button

Click on the "Create" button

info

If the Template name is incorrect, the cell will be displayed in red

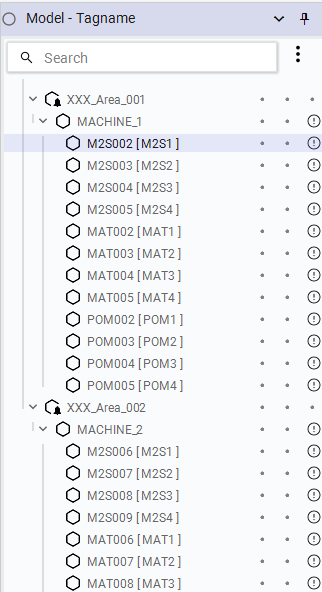

Result of the instantiation from the data in the example above.
