Attribute Creation/Import

This plugin allows you to massively create attributes (UDAs) through a simplified interface. It also allows you to enable certain extensions for these attributes.

The extensions that can be enabled through this interface are as follows:

  • History
  • I/O
  • State Alarm (only for Boolean attributes)

This plugin is accessible for Template or Instance objects via the IDE context menu.

Import via Copy/Paste​

It is possible to create attributes in bulk from a spreadsheet (like Excel) or a CSV file (tab, comma, or semicolon separator).

To use this feature:

alt text

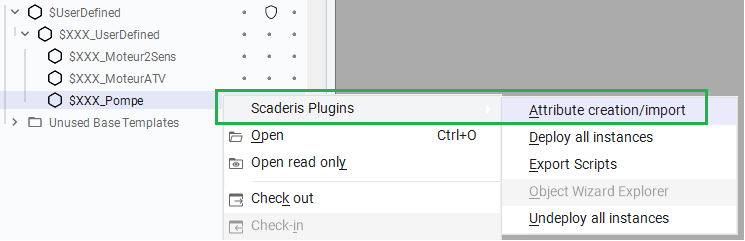

Right-click on an object (Template or Instance) and then click on "Scaderis Plugins > Attribute creation/import"

alt text

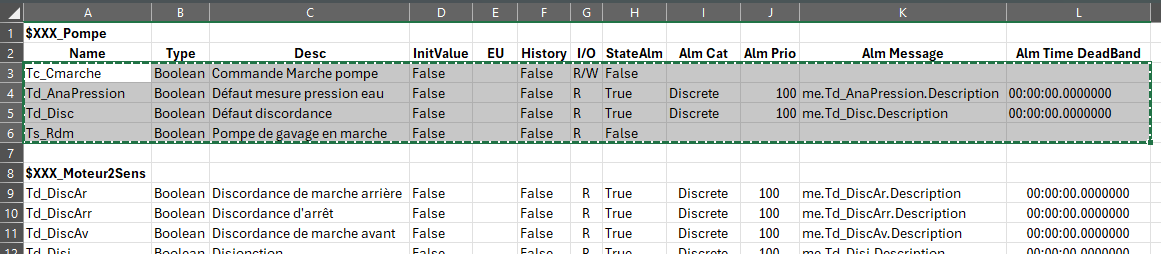

Copy only the data (without column headers) from the source file (Excel or CSV file)

alt text

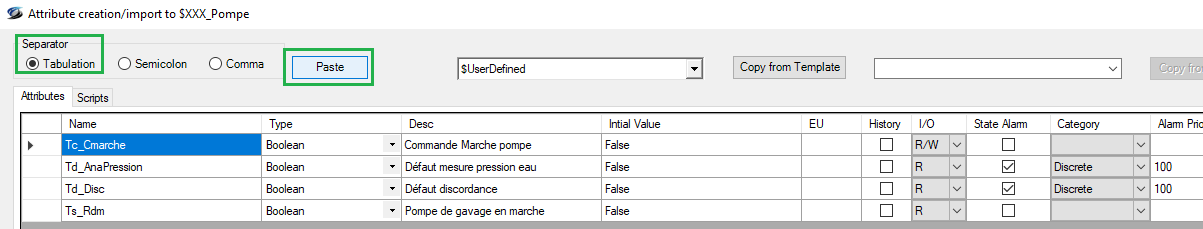

Select the separator, then click the "Paste" button

Import from a Template or Instance​

It is possible to create attributes in bulk by copying them from an existing Template or Instance in the Galaxy.

To use this feature:

alt text

Right-click on an object (Template or Instance) and select "Scaderis Plugins > Attribute creation/import"

alt text

To copy attributes from a Template, select the source Template in the ComboTreeview, then click "Copy from Template"

alt text

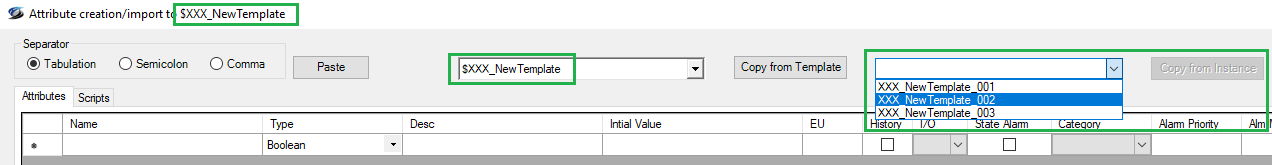

To copy attributes from an Instance, select the source Template in the first ComboTreeview, select the instance in the second ComboTreeview, then click "Copy from Instance"

alt text

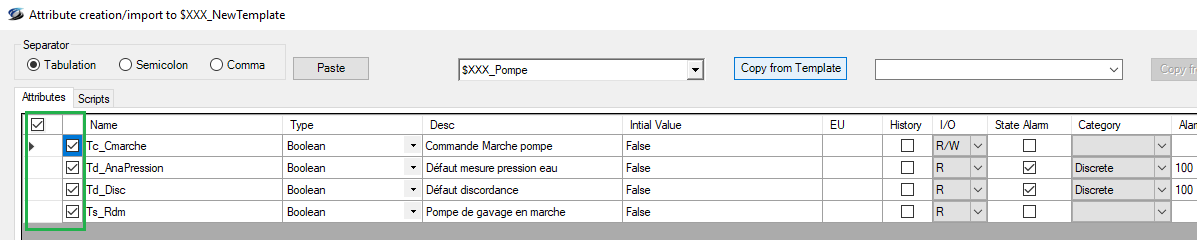

Once the attributes are retrieved in the table, you can select the ones you want to import using the checkboxes.

It is also possible to copy the scripts from the source object:

alt text

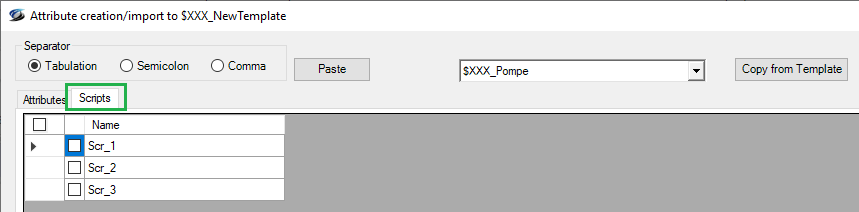

The list of scripts from the source object is displayed in the "Scripts" tab. Checkboxes allow you to select the scripts to import.

alt text
